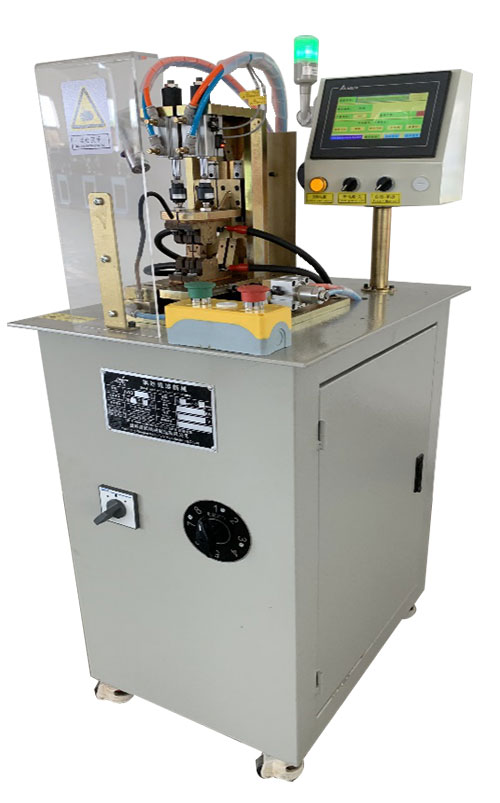

HWG-3A型 钢丝绳熔断机

HWG-3A型 钢丝绳熔断机

1、概述:

采用低电压、大电流将各种规格的钢丝绳夹在两电极之间,在0.5秒之内快速熔断。熔断端面效果可调整

2、设备规格以及功能:

加工规格:φ1.0mm-6.0mm

节拍:1出1根 3S / 件;

电压:三相四线(380+N) 功率:5-8 KW

外形尺寸:800x600x1600mm; 重量:350Kg.

功能:数控系统控制整机动作,熔断电流、熔断端面效果佳可调整;

(可定制)

1. Overview:

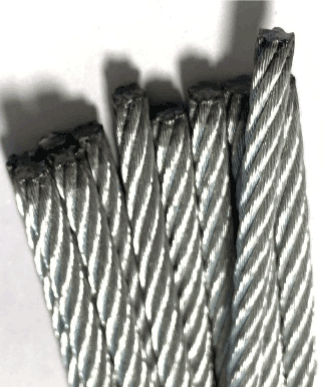

Use low voltage and high current to clamp various specifications of wire rope between two electrodes, and fuse quickly within 0.5 seconds. Adjustable fusing end effect

2. Equipment specifications and functions:

Processing specification: φ 1.0mm-6.0mm,

Beat: 1 out of 1. 3s / piece;

Voltage: three-phase four wire (380 + n) power: 5-8kw

Overall dimension: 800x600x1600mm; weight: 350kg

Function: CNC system controls the action of the whole machine, and the fusing current and the fusing end face effect can be adjusted;

(customizable)
