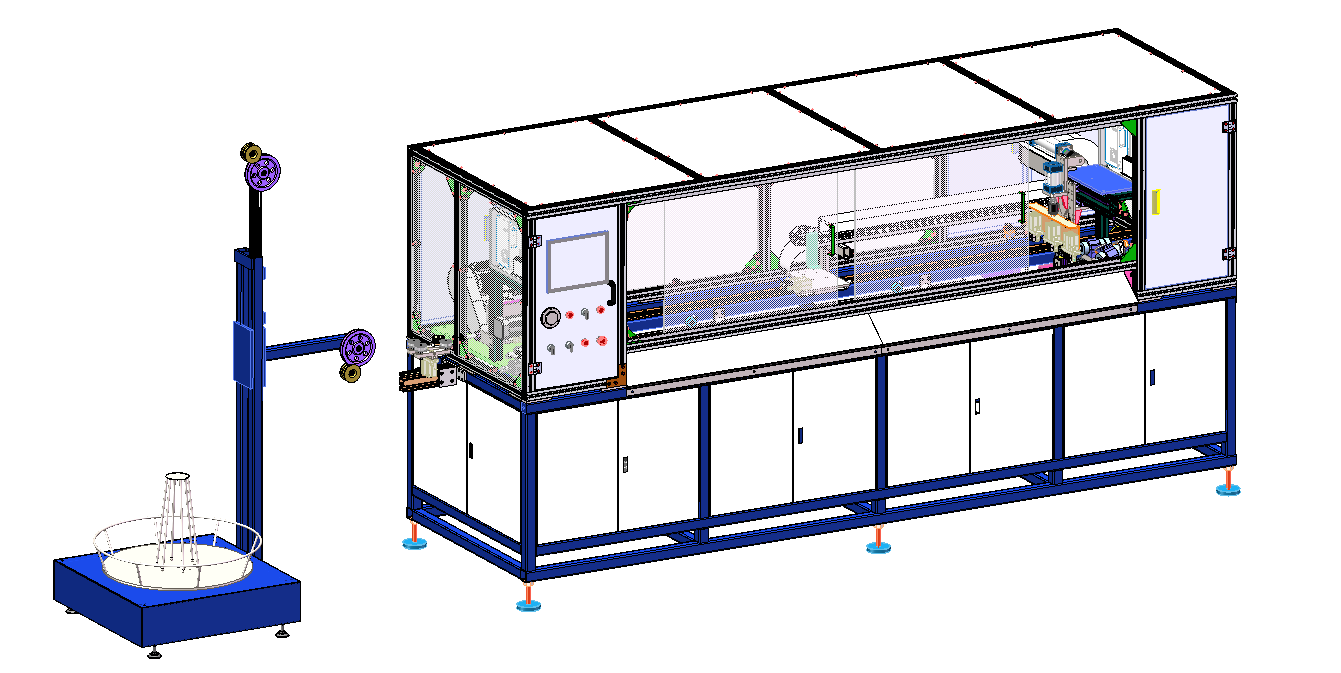

HWG-5型 自动软管切断/倒角机

HWG-5型 自动软管切断/倒角机

1、概述:

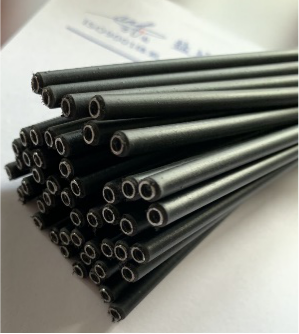

适合直丝管、螺旋管定长切断、内外同步倒角加工,切断口垂直,倒角稳定一致性高。

2、设备规格以及功能:

加工规格:φ4mm-8mm长度200mm-2100mm ;长度可定制

节拍:1出1根 6-9S/件;

电压:三相四线(380+N) 功率:6.5KW

外形尺寸:3600x1050x1800mm; 重量:1500Kg.

功能:数控系统控制整机动作,效率高使用维护便捷噪音低。

(可定制)

1. Overview: Latest model

It is suitable for the processing of fixed length, cutting, internal and external synchronous chamfering of spiral pipe, with vertical cutting fracture and high chamfering stability and consistency.

2. Equipment specifications and functions:

Processing specification: φ 4mm-8mm, length 200mm-2100mm; length can be customized

Beat: 1 out of 1. 6-9s / piece;

Voltage: three phase four wire (380 + n) power: 6.5kw

Overall dimension: 3600x1050x1800mm; weight: 1500kg

Function: CNC system controls the whole machine action, high efficiency, convenient use and maintenance, low noise.

(customizable)
