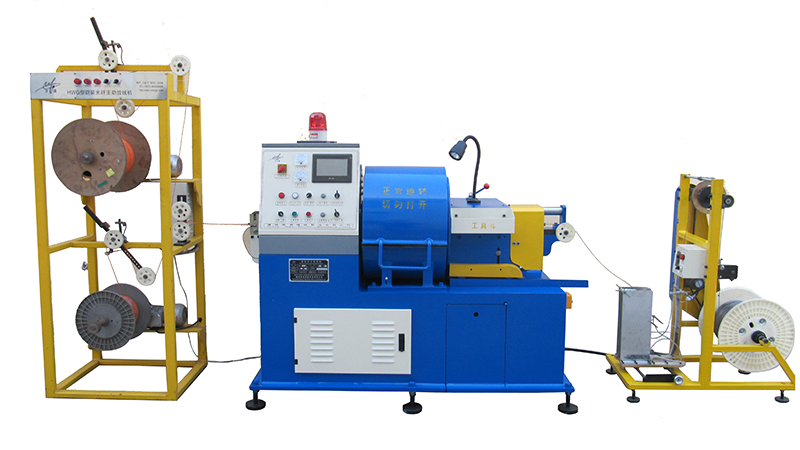

HWG-6S-2型 数控光纤螺旋铠装机

HWG-6S-2型数控光纤螺旋铠装机

1、概述:

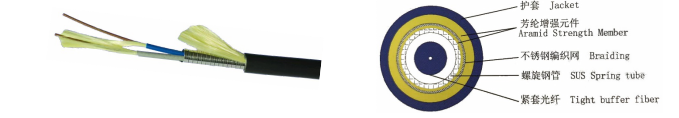

专业生产不锈钢丝金属软管,能自动连续生产φ0.6mm-φ16mm的光纤光缆铠装管。生产的铠装管用于室外拉远、机房通讯、配线架中光缆尾纤和跳线、室内竖井级和强制通风级布线、仪器、通信设备互联 等。

2、设备规格以及功能:

软管规格:φ0.6mm-φ1.6mm、φ1.0mm-φ6mm、φ7-φ12mm、φ12-φ16mm

速度:主机转速1060/1800r/50HZ;

电压:三相四线(380+N)频率:0-50Hz;功率:3-8KW

外形尺寸:2200x850x1850mm;重量:1300Kg.

功能:数控系统控制伺服电机运转,效率高使用维护便捷噪音低。

1. Overview:

Specializing in the production of stainless steel wire metal hose, automatic continuous production of φ 0.6mm - φ 16mm fiber optic cable armored pipe. The armored pipes are used for outdoor stretching, machine room communication, optical fiber pigtail and jumper in distribution frame, indoor shaft level and forced ventilation level wiring, instrument, communication equipment interconnection, etc.

2. Equipment specifications and functions:

Hose specification: φ 0.6mm - φ 1.6mm, φ 1.0mm - φ 6mm, φ 7 - φ 12mm, φ 12 - φ 16mm;

speed: host speed 1060 / 1800r / 50Hz;

Voltage: three phase four wire (380 + n) frequency: 0-50Hz; power: 3-8kw

Overall dimension: 2200x850x1850mm; Weight: 1300kg

Function: CNC system control servo motor operation, high efficiency, convenient use and maintenance, low noise.
